Laser Sensors

Precision sensing beyond limits.

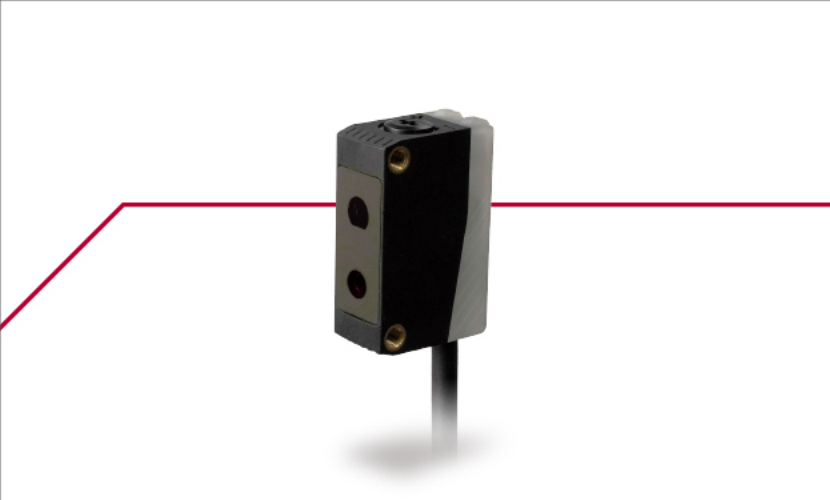

ZX-PE0040N

Laser Sensor

Ultra-precise point detection at 40mm.

The ZX-PE0040N photoelectric sensor delivers pinpoint 0.1mm spot accuracy at its rated 40mm detection range. Built for high-density component detection on PCB lines and precision assembly systems.

IEC standard photoelectric sensing
0.1mm ultra-fine spot at 40mm distance
Laser Red 650nm, Class 2 — safe & precise
< 1ms response time for high-speed lines
IP66 protection — dust-tight & jet-water resistant
Operating range: −10°C to 55°C

ZX-TD0200N

TOF Laser Sensor

Time-of-Flight precision up to 2000mm.

The ZX-TD0200N uses Time-of-Flight (TOF) technology to deliver reliable detection across multi-material, multi-color targets up to 2 meters away — where LED sensors fail. Perfect for conveyor height checks, pallet sensing, and AGV applications.

TOF (Time-of-Flight) principle — material & color independent
Detection range: 100–2000 mm
Spot size: 5mm @ 200mm — focused beam
< 1ms response for real-time control
IP64 protection — industrial-grade
Operating: −10°C to 55°C (No Freezing)
Light Source: Laser Red 650nm, Class 2

Technology Advantage

Why Laser Sensor?

Laser BGS (Background Suppression) vs LED Red Light — designed for precision industrial automation.

Recommended

Laser BGS

A high-precision sensing technology utilizing focused laser beams to detect objects based on distance, effectively ignoring distracting backgrounds.

Standard

LED Red Light

A standard sensing solution using a more diffuse visible red light beam, typically suited for general-purpose detection at shorter ranges.

CategoryLaser BGS ✓LED Red Light

Beam Precision & Spot Size

✓Highly concentrated, small light spot for detecting minute parts.

✗Wider, more diffuse beam.

Sensing Range & Depth

✓Extended sensing distances and superior depth resolution.

✗Limited range and standard depth resolution.

Material & Color Sensitivity

✓Significantly less affected by target color or surface reflectivity.

✗May struggle with varying target colors or surface reflectivity.

Superior Background Suppression

Ignores any object beyond the set focal point, eliminating false triggers from conveyor belts or machine frames.

Micro-Object Detection

Narrow laser beam allows for the precise detection of extremely small components or features that an LED sensor would overlook.

Operational Reliability

Ensures consistent performance in high-speed environments, reducing downtime and increasing overall system throughput.

Industrial Applications

Engineered for the environments where precision matters most.

🏭

Conveyor Belt Monitoring

Detect package height, presence, and gaps on high-speed conveyor lines without false triggers from belt surfaces or ambient light.

🤖

AGV & Robot Navigation

Provide precise distance feedback for autonomous guided vehicles and robotic arms requiring reliable obstacle detection up to 2 meters.

🔬

PCB Component Inspection

Ultra-fine 0.1mm spot size enables detection of micro-components on circuit boards — critical for surface-mount technology lines.

📦

Pallet & Rack Sensing

Confirm pallet presence and positioning in warehouse racking systems, with color-independent TOF sensing for all pallet materials.
